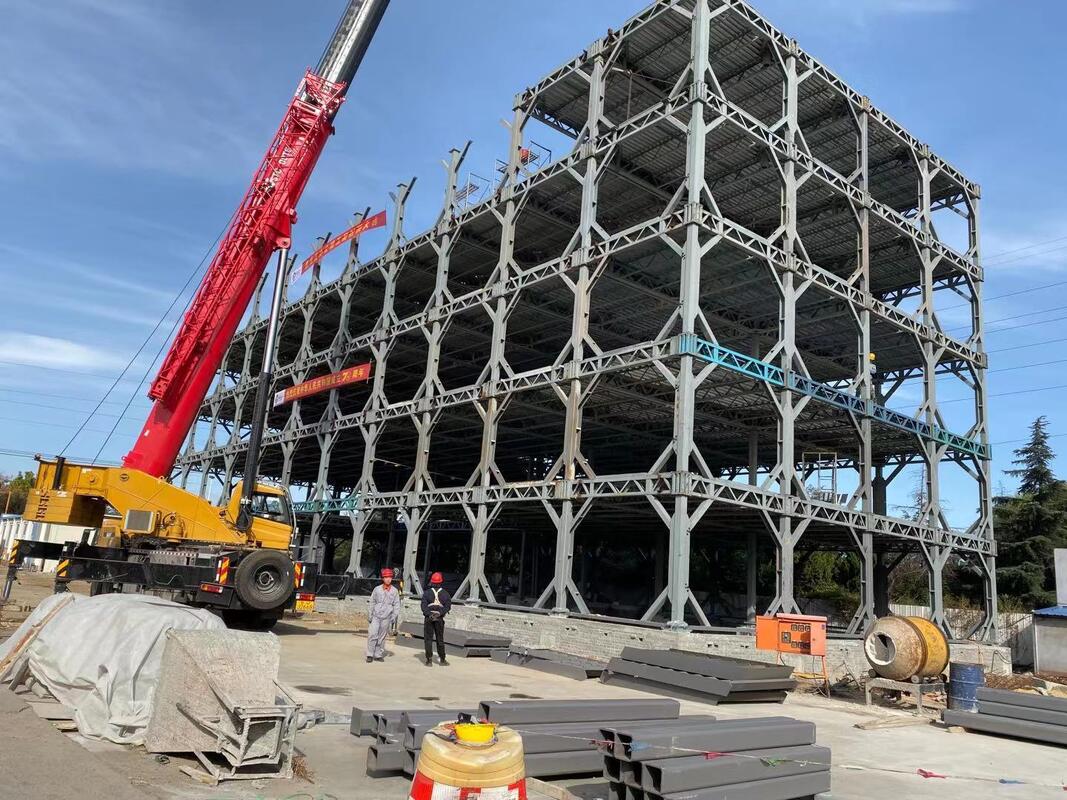

Heavy Duty Structural Steel Fabrication for Multi-Story Industrial Projects
| Steel Structure Parts:(Q235 or Q355) Hot galvanized or painted |
(1). Steel Column: H Section Steel |
| (2). Steel Beam: H Section Steel |
| (3). Withstand Wind Column: H Section Steel |
| (4). Connected beam: Circular Tube |
| (5). Roof Purline: cold-formed galvanized C Section Steel or Z Section Steel |
| (6). Wall profile: cold-formed galvanized C Section Steel or Z Section Steel |
| (7). End Wall profile: C Section Steel or Z Section Steel |
| Panel Material parts |
(1). External Wall panel: (below is selectable) |
| 1) 50mm, 75mm, or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm, or 100mm thickness Rockwool sandwich panel |
| 3) 50mm, 75mm or 100mm thickness PU OR FIBER GLASS wool sandwich panel |
| 4)Corrugated Galvanized Steel sheet with different colors |
| (2). Internal Wall panel: (below is selectable) |
| 1)50mm, 75mm, or 100mm thickness EPS sandwich panel |
| 2) 50mm, 75mm, or 100mm thickness Rockwool sandwich panel, fiber glass wool sandwich panel or PU sandwich panel |
| (3). Roofing panel: (below is selectable) |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel |
| 2)50mm, 75mm or 100mm thickness Rockwool sandwich panel |
| 3)Corrugated Steel Sheet, and an insulating layer if needed. |
| 4) 50mm, 75mm or 100mm thickness fiberglass wool or PU sandwich panel |
| (4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP) |
| Door and Window |
(1). External Door (Rolled-up door or Sliding door ) |
| -1. Sandwich panel Sliding Door with double open |
| -2. Galvanized steel opening by power-operated Roller Door |
| (2). Internal Door: 50mm Thickness EPS sandwich panel with aluminum alloy door frame |
| (3). Window: PVC Window or aluminum alloy window frame with glass. |
| Drainage parts |
(1).Galvanized water channel: |
| 2mm thickness galvanized steel water channel 3000mm or 2440mm/pcs |
| (2). Down spout: ∅110 PVC Down spout with Accessorie |
| Connecting Piece |
(1) Purline draw bar: ∅12 |
| (2) Horizontal Bracing: ∅24 Circular Tube |
| (3) Knee-Bracing: L Steel |
| (4) Purline Drive pipe: Φ32*2 |
| (5) Column Bracing: ∅24 Circular Tube |
Technical Parameters:
Features
1. Attractive design: The whole Steel structure workshop looks beautiful and elegant. The inner/ outer walls and the roof boarding all use the same color steel panel, and the filling material could be a thermal core.2. Lightweight and convenient in shipping.3. Easy to assemble and dismantle: the steel structure workshop can be rebuilt dozens of times. The assembling only requires simple tools: plugs and screws, and we can send engineers to help you to install them.4. Firm structure: the steel structure warehouse adopts a steel frame structure and sandwich panels.5. Waterproof: Our warehouses are completely waterproof.6. Customized. The customer can choose the roof, wall, door, and windows.
7. Durable: The steel frame parts are all processed with an anti-corrosion coating and can be used for as long as 50 years from the design date.
Quote Information
Could you pls advise your requirements for the steel structure project?
1. Project location;
2. Dimension (length*width*eave height);
3. There is mezzanine or not? How many kgs will be loaded per square meter on the mezzanine if have?
4. Steel sheet or sandwich panel roof and wall;
5. Snow load if applicable;
6. Wind speed;
7. There is a crane inside the building or not?;
9. Any other particular requirements?
Support and Services:
Our Steel Structure Warehouse product comes with the following technical support and services:
-
Assistance with the installation and assembly of the steel structure
-
Provide tailor-made custom design plans
-
Multiple automated manufacturing plants meet the processing needs of steel structure portal steel frames and special-shaped steel.
Consultation on customization options to meet specific needs
Our team of experts is dedicated to ensuring your satisfaction with our Steel Structure Warehouse product and is available to assist you every step of the way.
Packing and Shipping:
Product Packaging:
Our Steel Structure Warehouse product will be packaged in high-quality packaging materials to ensure safe transportation and delivery to your location. Each component will be carefully wrapped and secured to prevent damage during shipping.
Product Shipping:
We offer reliable and efficient shipping options for our Steel Structure Warehouse product. Our team will work with you to determine the best shipping method based on your location and delivery requirements. We will provide you with tracking information so you can easily monitor the status of your shipment.
FAQ:
Q:Are you a manufacturer or trading company?
A:We are a manufacturing factory located in Qingdao city, near the Qingdao port. We have three workshops, covering everything from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have ISO and CE certificates. Products are processed through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally, within 30-45 days, depending on the order quantity. Partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey jobs for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you a suitable solution according to your requirements before placing an order. Proposal drawing, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
